 General Purpose Designs
|
( Click to Enlarge )
 |
|
( Click to Enlarge )
|

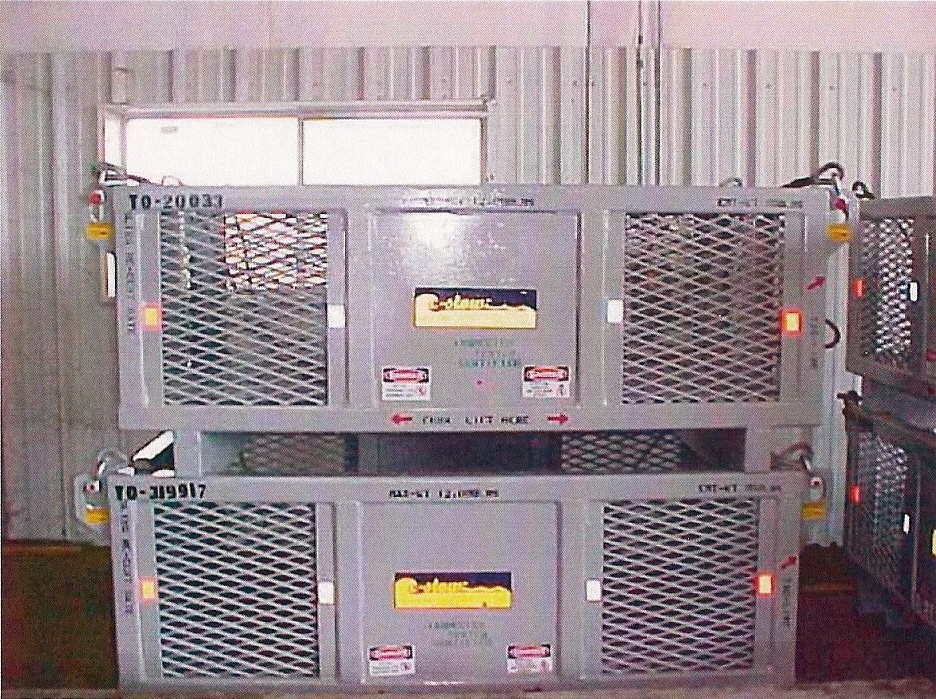

| 3 X 6 Design |

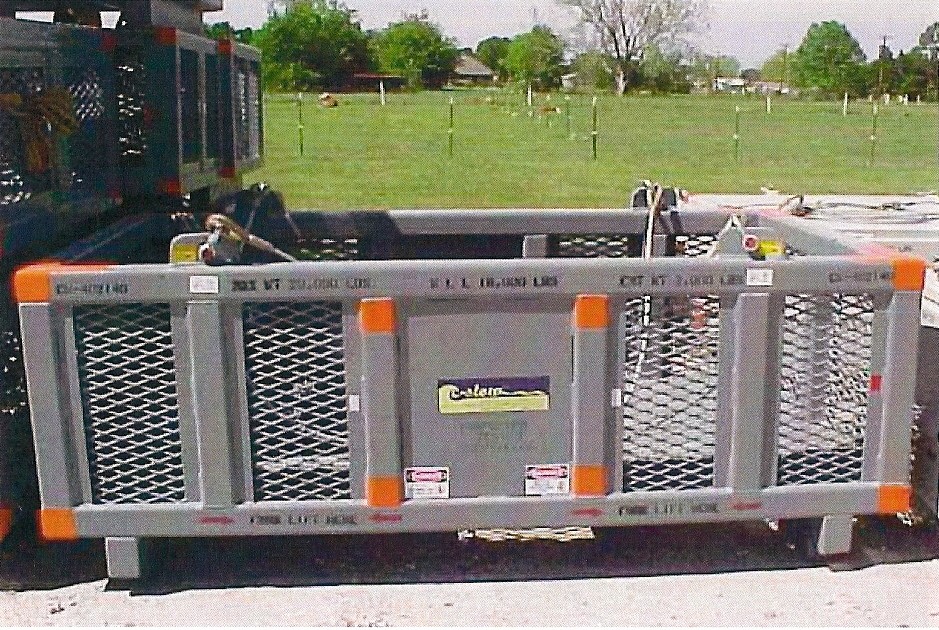

4 X 8 Design
|
|
Size
|
Empty Weight
|
Max Weight Capacity
|
|
2' X 4'
|
600 LBS.
|
4,000 LBS. |
|
3' X 5'
|
860 LBS.
|
***10,000***LBS. |
|
3' X 6'
|
950 LBS.
|
***12,000***LBS. |
|
3' X 8'
|
1,540 LBS.
|
16,000 LBS. |
|
3' X 10'
|
1,650 LBS.
|
16,000 LBS. |
|
2' X 10'
|
1,400 LBS.
|
18,000 LBS. |
|
3' X 16'
|
2,400 LBS.
|
28,000 LBS. |
|
4' X 16'
|
3,350 LBS.
|
36,000 LBS. |
|
3' X 35'
|
4,200 LBS.
|
18,400 LBS. |
|
3' X 70'
|
7,200 LBS.
|
39,400 LBS. |
|
3' X 75'
|
7,200 LBS.
|
***20,000*** LBS. |
|
4' X 8'
|
1,850 LBS.
|
***20,000*** LBS. |
|
4' X 10'
|
1,850 LBS.
|
***20,000*** LBS. |
|
4' X 12'
|
2,240 LBS.
|
***20,000*** LBS. |
|
3' X 12'
|
2,150 LBS.
|
24,000 LBS. |
|
3' X 17'
|
2,800 LBS.
|
28,000 LBS. |
|
3' X 14'
|
2,250 LBS.
|
24,000 LBS. |
|
4' X 20'
|
2,640 LBS.
|
34,000 LBS. |
|
3' X 40'
|
5,500 LBS.
|
42,000 LBS. |
|
3' X 50'
|
5,300 LBS.
|
35,000 LBS. |
|
5' X 50'
|
6,300 LBS.
|
49,000 LBS. |
.
Empty
Weights Include Slings and Shackles Attached.
.
(**
**) Denotes having a higher
Engineered Load Weight Capacity then Published.
.
All Baskets Pre-Slung With American MFG.
Crosby Brand Slings and Shackles.
.
US Patents Pending / some Applied.
|
 |
|
